Logo Projection

Dias for logo projection

  • Highly stable Borofloat flat glass or other glass materials
  • Typical geometries 8 mm x 8 mm x 1,1 mm
  • Auer Lighting Gobo coating (one-sided diffuse scattering)
  • Black & white, gray-scale or multi-color designs
  • Laser-structured logos
  • AR coatings

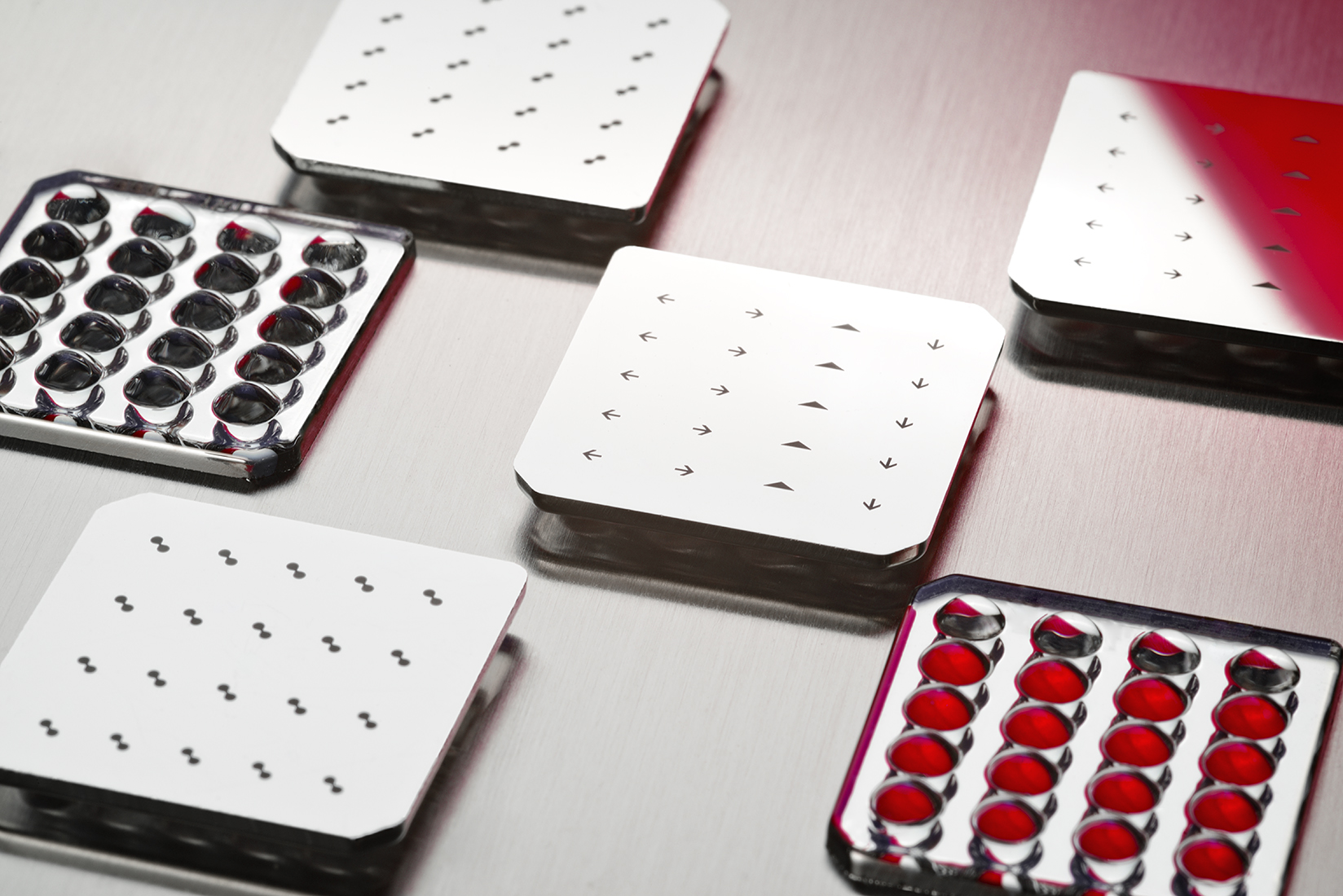

Multi-lens Arrays

Material:   Borosilicate Glass Suprax® 8488
Max. array size:  70.0 x 70.0 mm or Æ80 mm
Min. plate thickness > 1 mm (backside ground and polished)
Lens diameter:  ≥ 0.5 mm (spherical or aspherical)
Lens aperture:  round, rectangular
Arrangement:  linear, hexagonal, round
Pitch:   overlapping possible
Pitch accuracy:  ≤ 10 µm across 25 mm
Contour accuracy:   ≤ 20 µm across 25 mm
Rim (non optical area):  0 … 2 mm

Products

Gobos

for welcome, symbol and interior lighting

Auer Lighting uses laser ablation technology to structure metal, enhanced metal and dichroic coatings. Precise structures with a high resolution can be realized.

read more
Lens Arrays
Multi-Lens Arrays

for ideal lighting, right where you need it

Free-form lenses with high contour accuracies optimized with AR and correction coatings.
