Glass Filter – IR/AR BLOCKING

  • “Borofloat” Borosilicate Glass
  • Thickness: 2,0 mm
  • Size: 220 x 380 mm
Temperature stability 400 °C
Thermal shift < 0.1% / 100 K

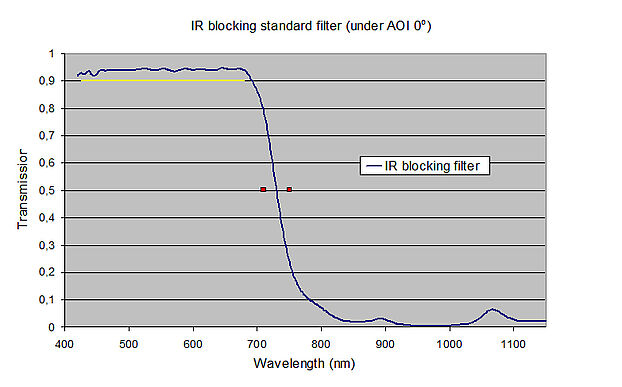

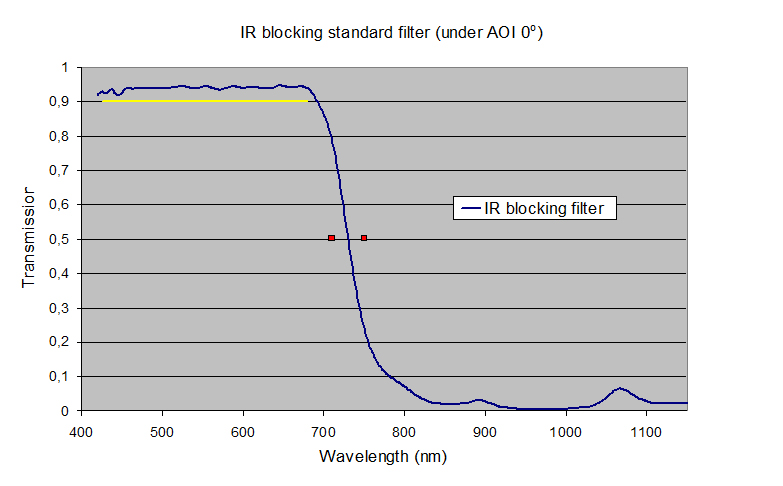

T = 50% edge position VIS-NIR 730 nm +/- 20 nm
Transmission region 425 - 680 nm T(ave) > 90%
T(ave) in IR blocking region 800 - 1150 nm < 3%

The transmission in the visible region is about 3% increased due to the AR coating on the back side of the filter.

Adherence Tape test according to MIL-C 675 C and MIL-C-48497 A
Abrasion Cheesecloth test according to MIL-M-13508 C and MIL-C-48497 A
Humidity Climate chamber test according to MIL-C-48497 A

Customs tariff number: 70140000


Order now

Glass Filter – IR/AR BLOCKING
Art. no.: 1437747
Price per piece:
1 piece 250,00 €
10 pieces 175,00 €
Amount
